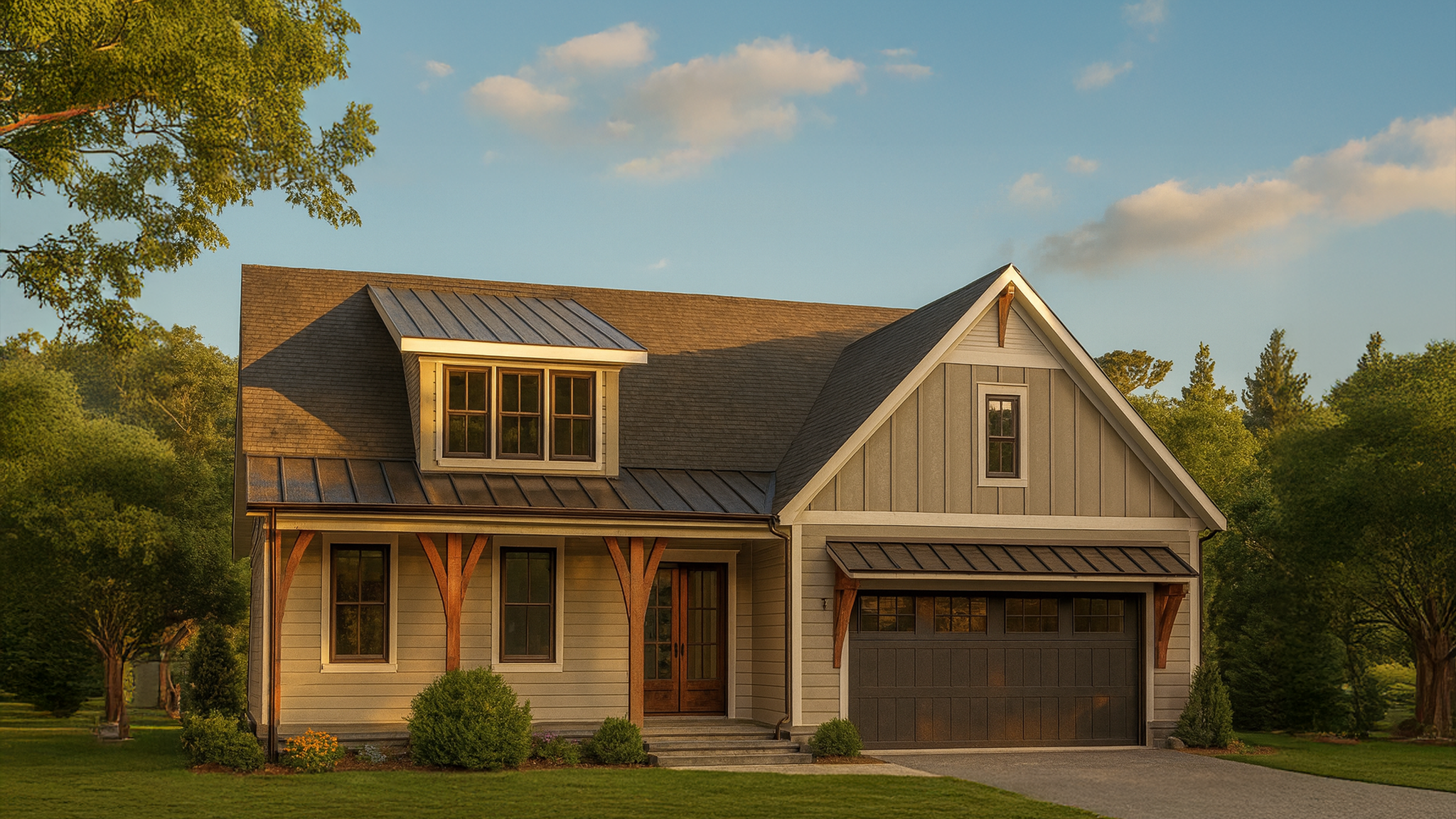

The Bruichladdich - 2550 Sq. Ft. - 4 Bedrooms - 2.5 Bathrooms - House Plan Exterior
The Bruichladdich
The Bruichladdich

The Bruichladdich

Starting at
$1,865.00 - $2,665.00

The Bruichladdich - 2550 Sq. Ft. - 4 Bedrooms - 2.5 Bathrooms

The Bruichladdich is a charming home designed for comfort, style, and everyday living. This thoughtfully laid-out plan offers inviting, open living spaces perfect for family life or entertaining, while providing a balanced flow between living, sleeping, and utility areas. With a comfortable footprint and flexible layout, the home blends present-day conveniences with classic design elements — making The Bruichladdich a great option for families, couples, or anyone wanting a well-proportioned, attractive home that feels both cozy and refined.

Designed and sold directly by the original residential designer. Construction-ready drawings included, with custom modifications available.

  • Includes a single-build residential license (one home build)
  • Complete builder-ready plans for permit and construction (for most jurisdictions)
  • PDF file can be emailed to your builder and suppliers, uploaded for permits and sent to your local print shop for blueprint copies
  • Need changes after purchase? Custom revisions are available upon request
  • Digital delivery — no shipping. Drawings are personalized with your name on the title block.
  • Designer support available after purchase

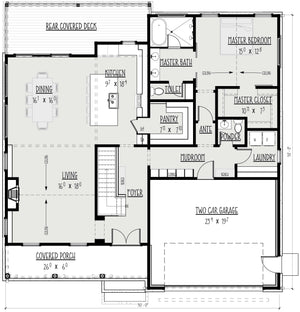

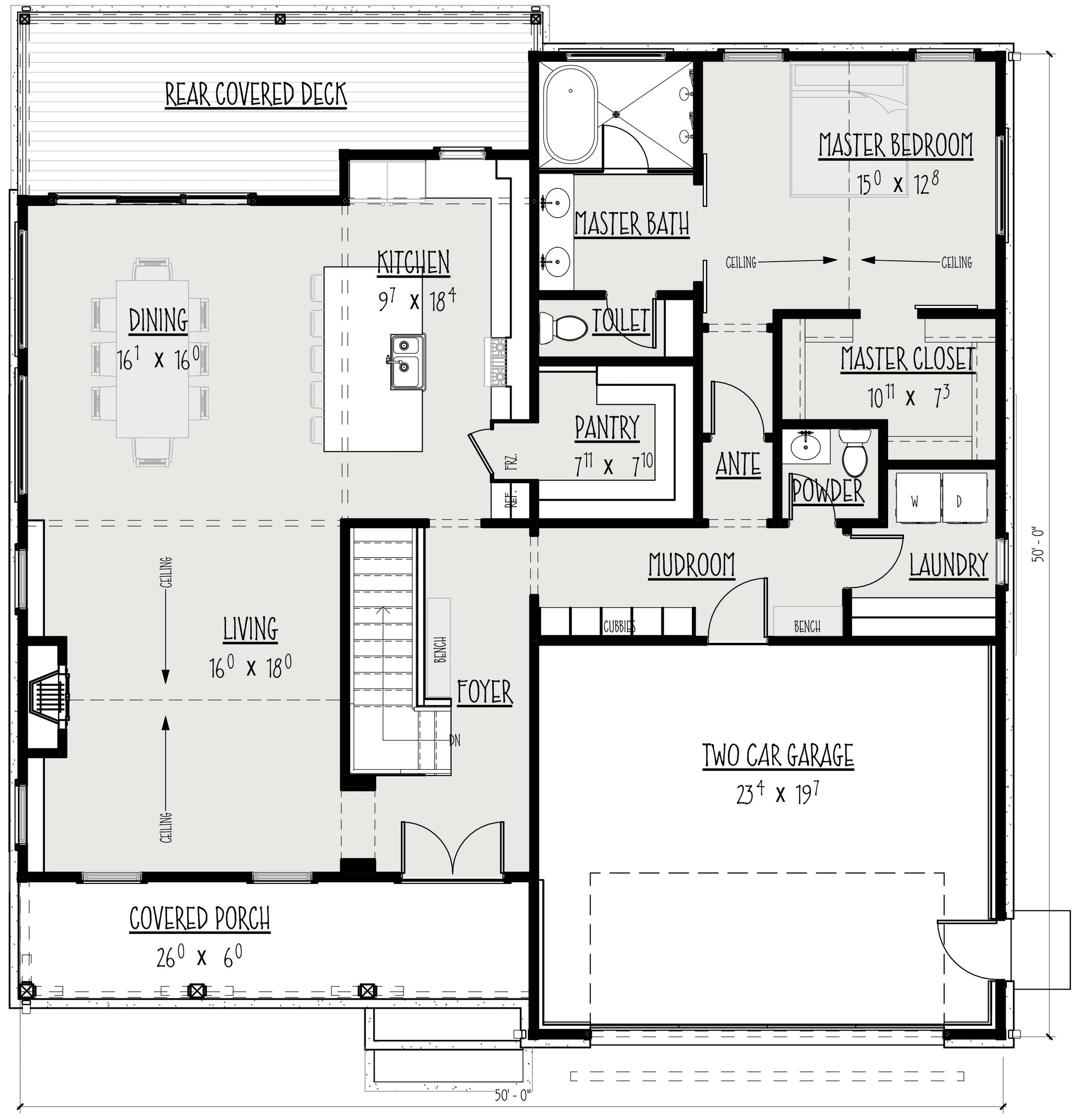

The Bruichladdich main level floor plan
Main Level Floor Plan (click to enlarge)

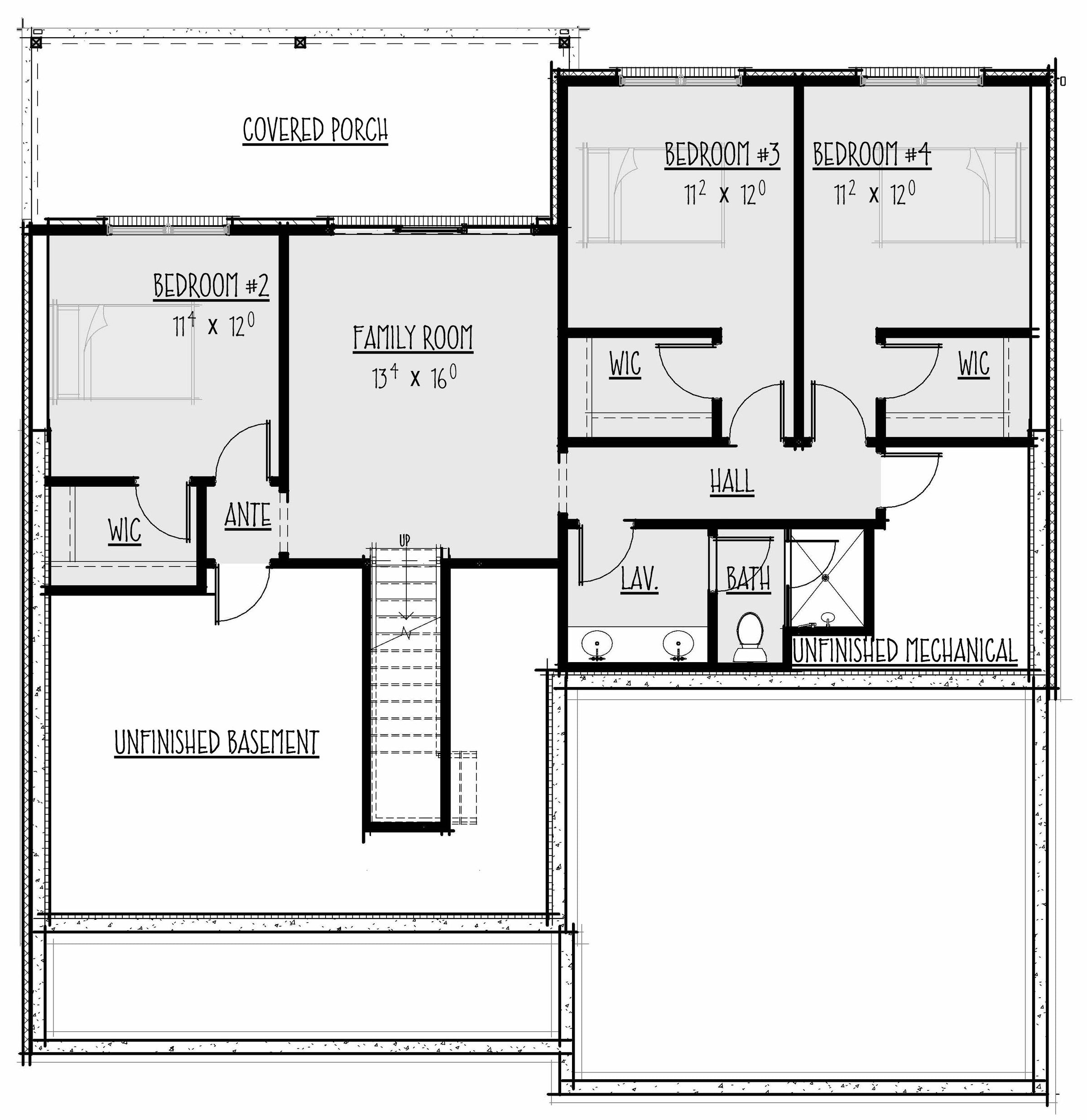

The Bruichladdich lower level floor plan
Lower Level Floor Plan (click to enlarge)
Customize This Plan
Want to tweak room sizes, adjust the exterior, or rework the layout? Tell us what you have in mind and we’ll review options and pricing for this specific plan.
Request customization
Square Footage Details
Total Heated Sq. Ft.: 2550 Sq. Ft.
Main Level Sq. Ft.: 1574 Sq. Ft.
Lower Level Sq. Ft.: 976 Sq. Ft.
Garage Sq. Ft.: 477 Sq. Ft.
Entry Covered Porch Sq. Ft.: 156 Sq. Ft.
Rear Covered Porch Sq. Ft.: 221 Sq. Ft.
Bedrooms / Baths
Bedrooms: 4
Full Baths: 2
Half Baths: 1
Total Baths: 2.5
Site Considerations
Lot Configuration: Sloping to Rear
Width: 50'
Depth: 52'
Max Ridge Height: 27.5
Foundation Type
Foundation: Basement
Walkout Basement: Yes
Request different foundation type
Exterior Wall Construction
Wall Construction: 2x4
Exterior Finish: Stone, Siding
Request different exterior wall construction
Garage Details
Garage Type: Attached
Garage Entry: Front Load
Garage Bays: 2.0
Garage Sq. Ft.: 477 Sq. Ft.
Ceiling Heights
Main Level: 10'
Roof Details
Main Roof Pitch: 9/12
Secondary Roof Pitch: 12/12
Max Ridge Height: 27.5
Roof Framing Type: Truss
Plan Features
  • Mudroom
  • Vaulted/ 2 Story Great Room Ceiling
Laundry Location: Main Level, Adjacent to mudroom
Master Suite Location: Main Level
Plan Contents
  • Cover Sheet with General Notes
  • Exterior Perspective Views
  • Foundation Plan
  • Floor Plans with Dimensions and Annotation
  • Roof Plan
  • Exterior Elevations
  • Sections
  • Construction Details
×
Request Plan Customization
Tell us how you’d like to modify this plan. We’ll review your ideas and follow up with options and pricing.
×
Request Different Foundation Type
Tell us what foundation type you’d like for this plan and we’ll review feasibility and pricing.
×
Request Different Exterior Wall Construction
Tell us what wall system or exterior materials you’d like to use for this plan.
× The Bruichladdich main level floor plan enlarged
×
× The Bruichladdich lower level floor plan enlarged
