25021
Plan Code
2349
Total Sq. Ft.
3
Bedrooms
2.5
Bathrooms
1.5
Stories
2.0
Garage Bays

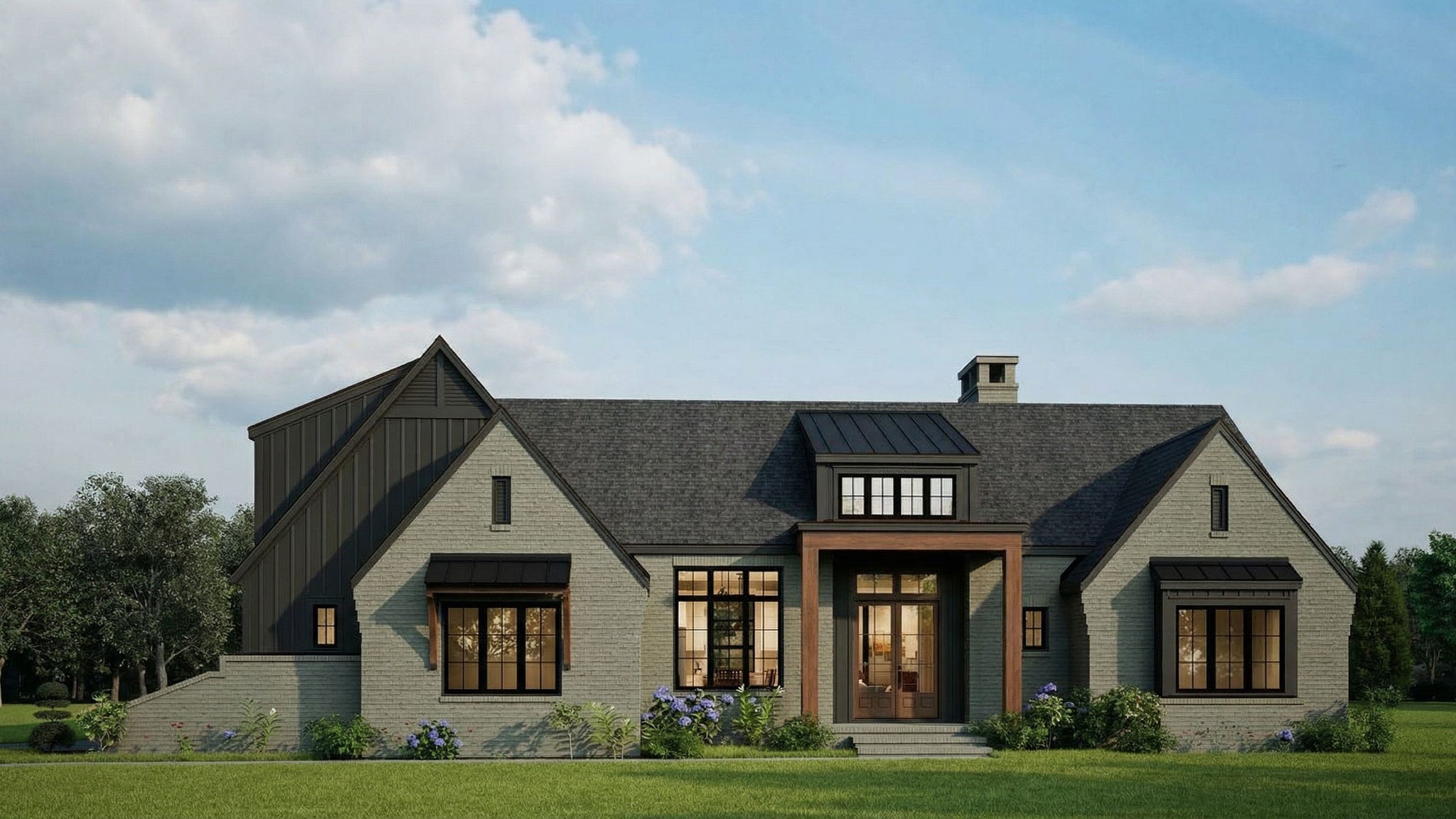

The Cardhu - 2349 Sq. Ft. - 3 Beds - 2.5 Baths - House Plan Exterior
The Cardhu
The Cardhu

The Cardhu

Starting at
$2,065.00 - $2,865.00

The Cardhu - 2349 Sq. Ft. - 3 Bedrooms - 2.5 Bathrooms

Looking for other similarly sized plans?

Browse 2000 - 3000 Sq. Ft. homes here.

This elegant modern European cottage blends refined curb appeal with a highly functional family layout. The main level features an open kitchen, dining, and living space framed by large windows and a vaulted ceiling, along with a luxurious master suite, private laundry/mudroom zone, and easy access to a spacious covered porch for outdoor living. Upstairs, two generously sized bedrooms share a full bath and enjoy charming sloped-ceiling character. Thoughtful storage, a walk-in pantry, and a two-car garage make this design as practical as it is beautiful—perfect for families seeking timeless style with modern comfort.

Designed and sold directly by the original residential designer. Construction-ready drawings included, with custom modifications available.

  • Includes a single-build residential license (one home build)
  • Complete builder-ready plans for permit and construction (for most jurisdictions)
  • PDF file can be emailed to your builder and suppliers, uploaded for permits and sent to your local print shop for blueprint copies
  • Need changes after purchase? Custom revisions are available upon request
  • Digital delivery — no shipping. Drawings are personalized with your name on the title block.
  • Designer support available after purchase

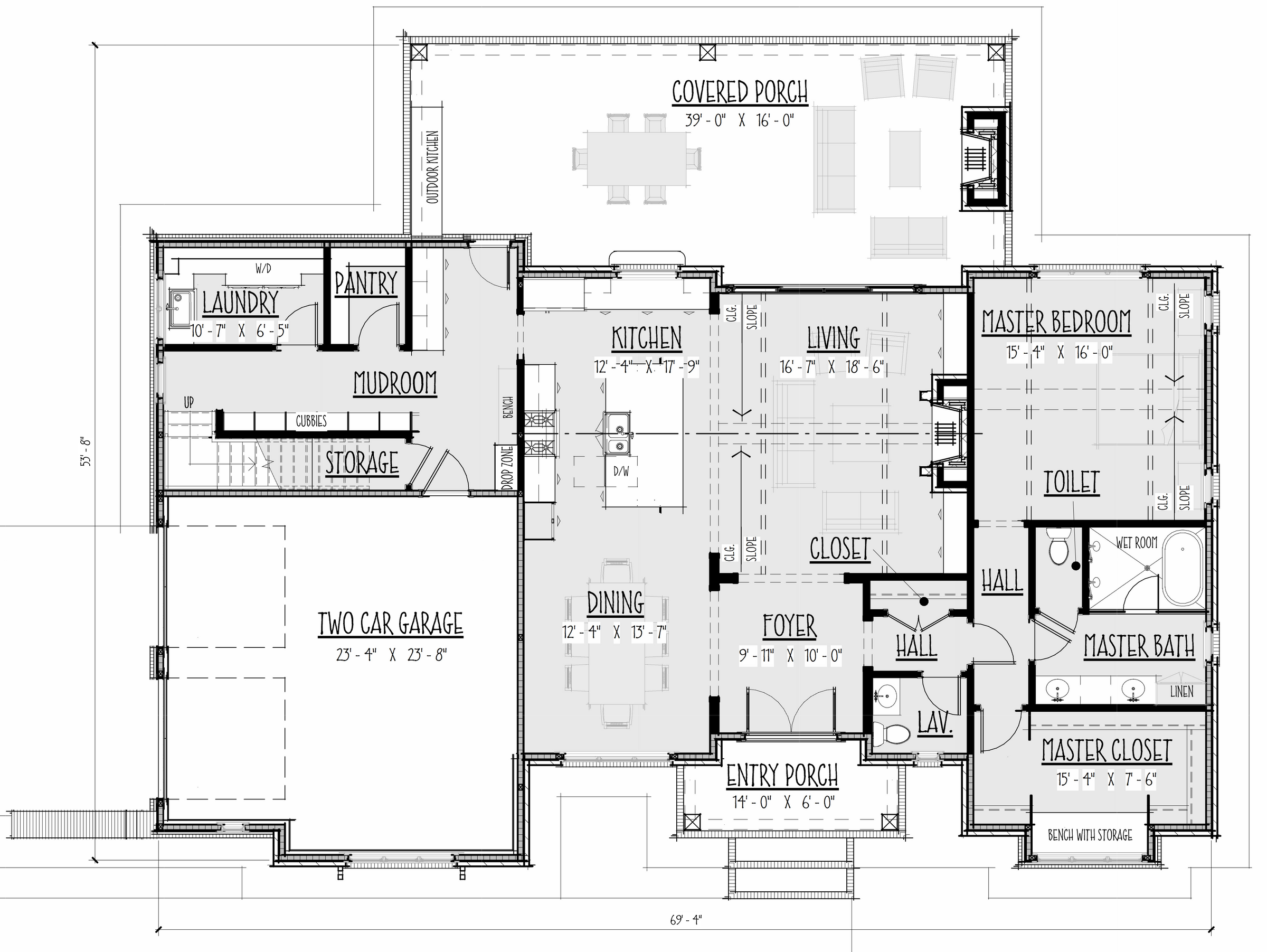

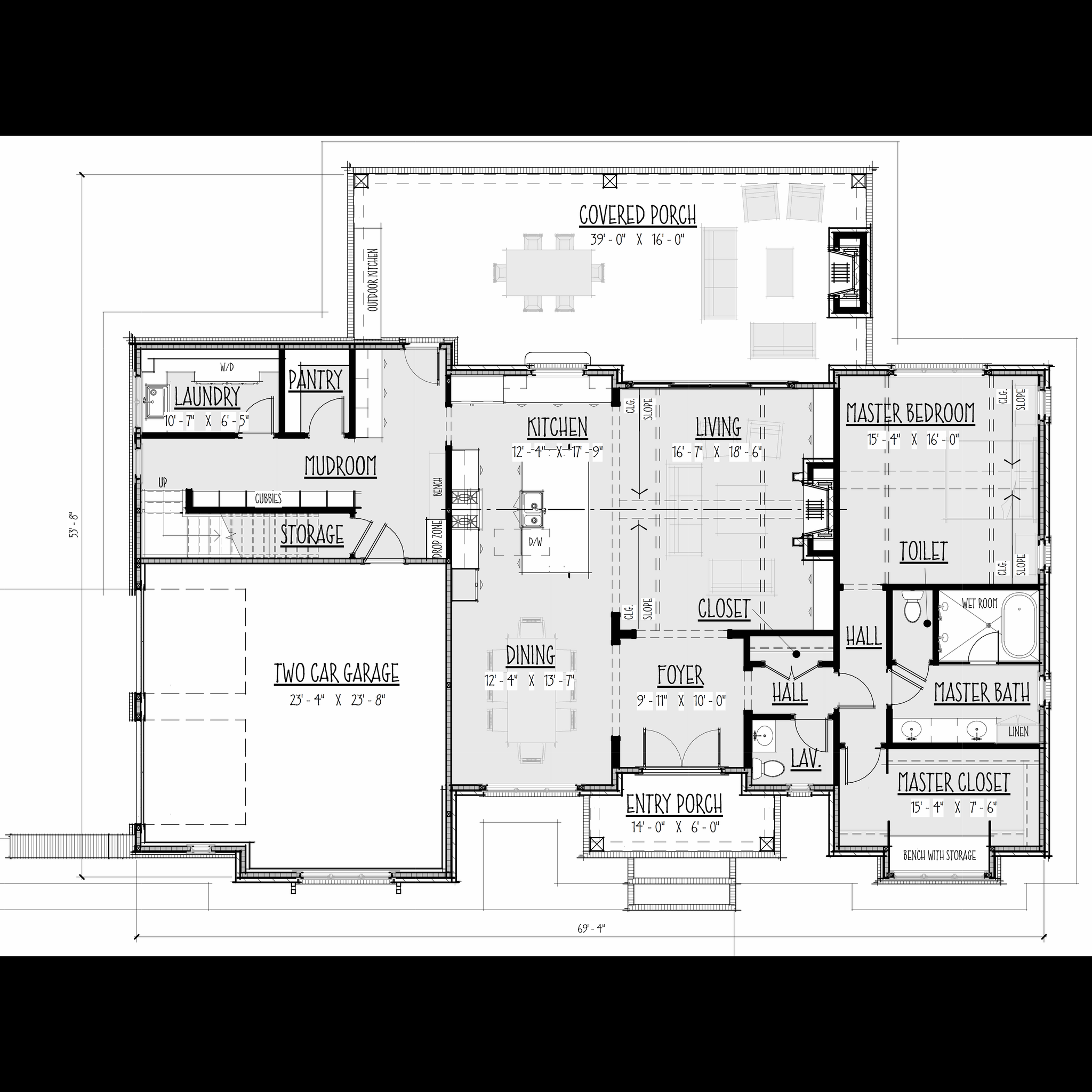

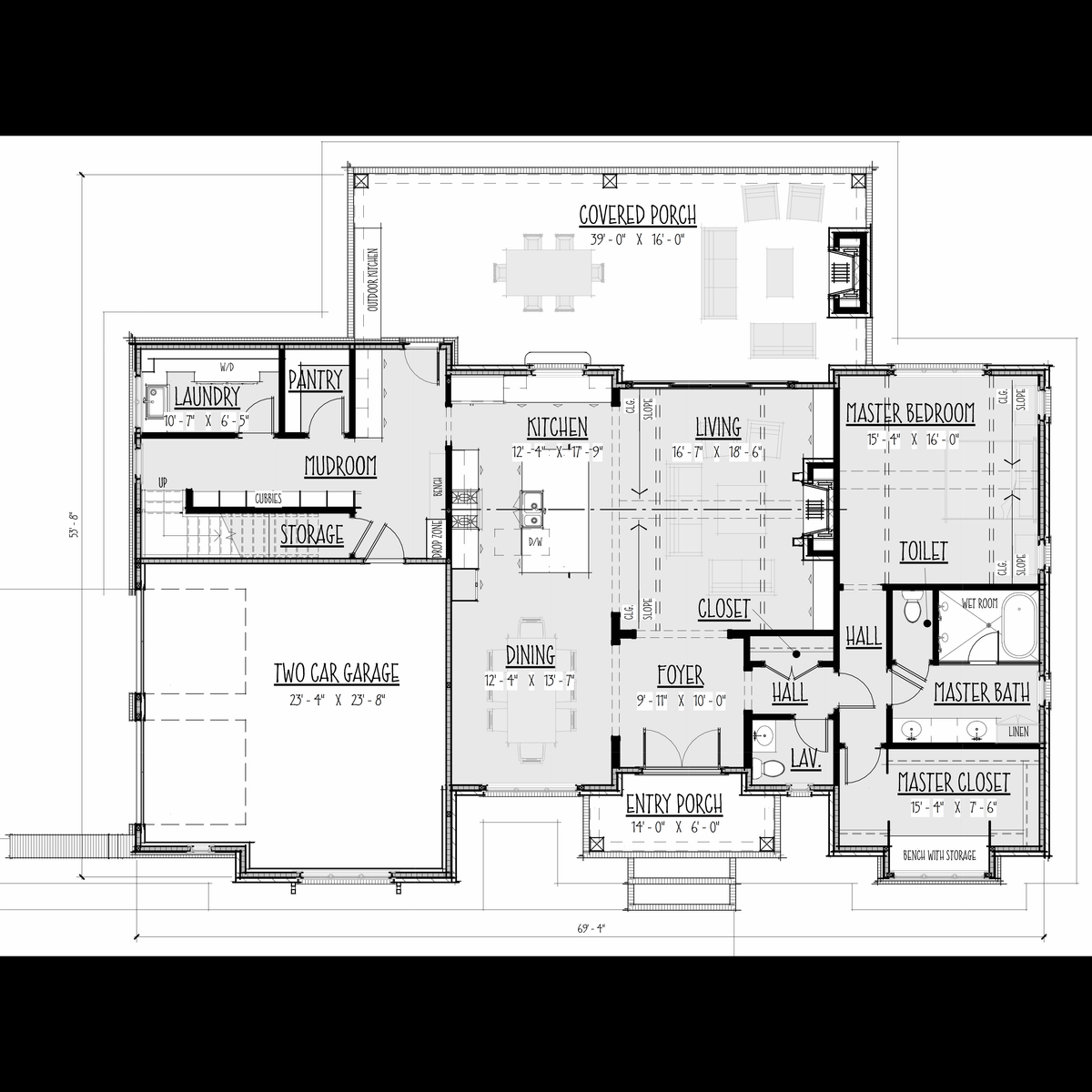

The Cardhu main level floor plan
Main Level Floor Plan (click to enlarge)

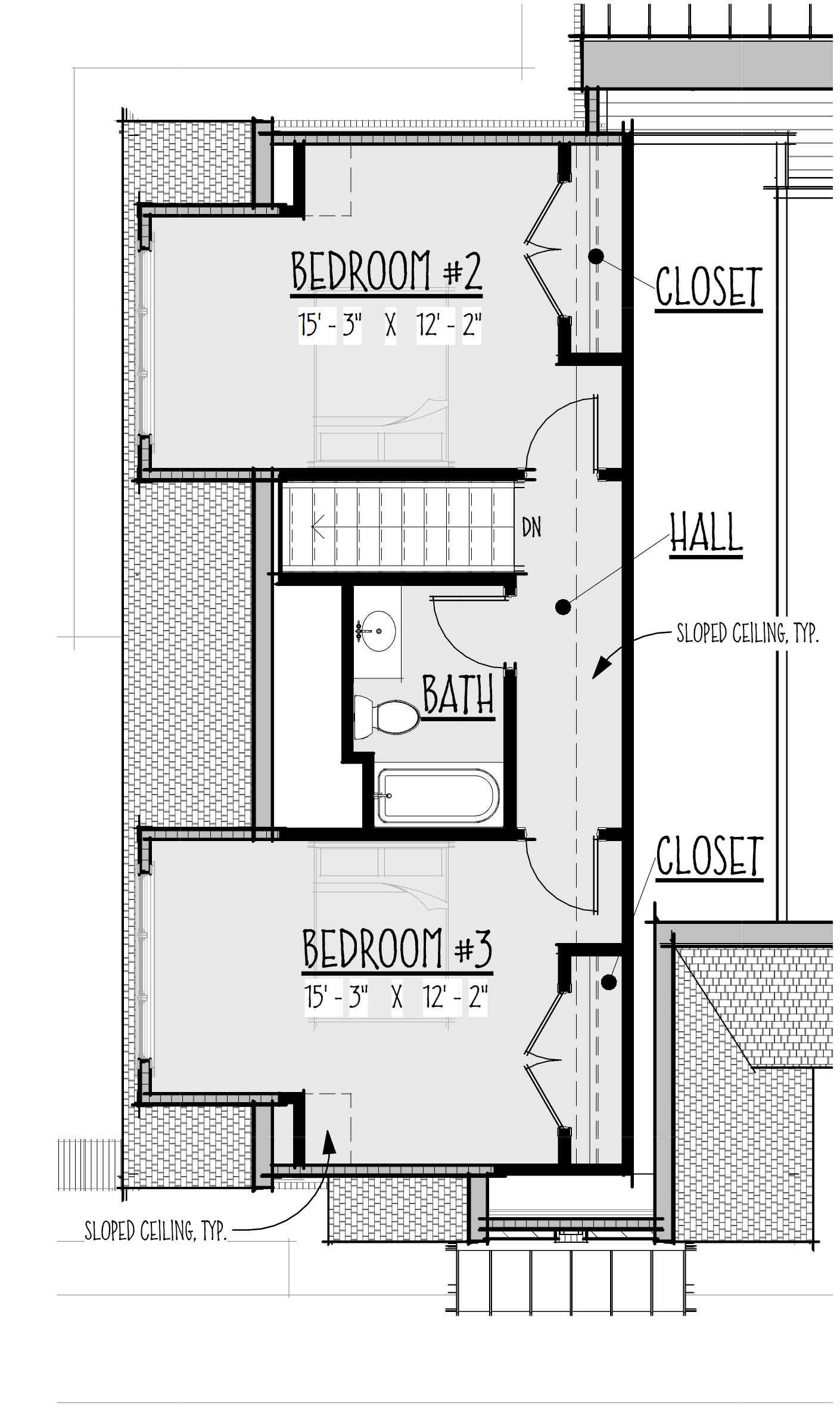

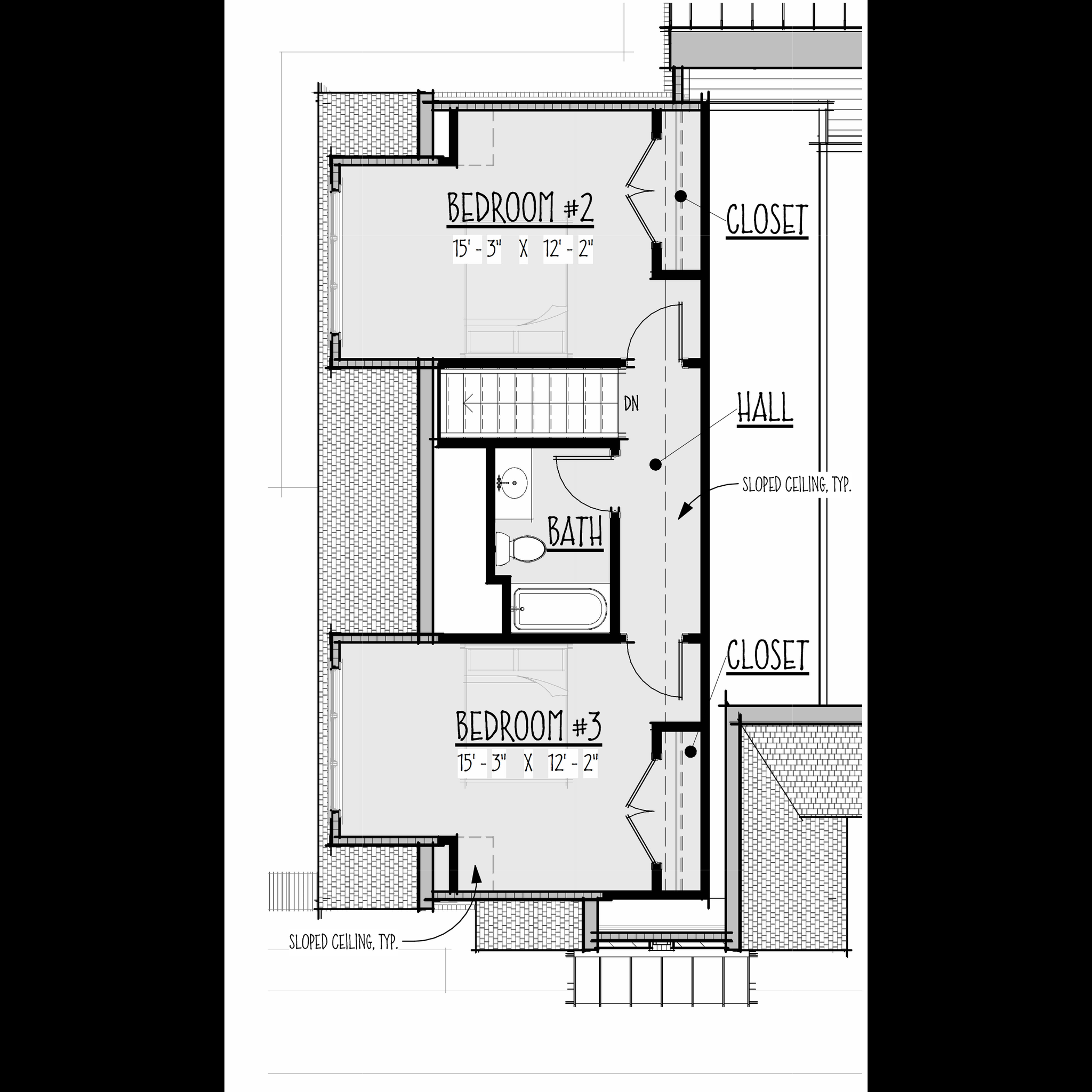

The Cardhu second level floor plan
Second Level Floor Plan (click to enlarge)
Customize This Plan
Want to tweak room sizes, adjust the exterior, or rework the layout? Tell us what you have in mind and we’ll review options and pricing for this specific plan.
Request customization
Square Footage Details
Total Heated Sq. Ft.: 2349 Sq. Ft.
Main Level Sq. Ft.: 2349 Sq. Ft.
Bonus Room Sq. Ft.: 507 Sq. Ft.
Garage Sq. Ft.: 555 Sq. Ft.
Entry Covered Porch Sq. Ft.: 79 Sq. Ft.
Rear Covered Porch Sq. Ft.: 587 Sq. Ft.
Bedrooms / Baths
Bedrooms: 3
Full Baths: 2
Half Baths: 1
Total Baths: 2.5
Site Considerations
Lot Configuration: Flat
Width: 69' -4"
Depth: 53' -8"
Max Ridge Height: 26.2
Foundation Type
Foundation: Crawlspace
Request different foundation type
Exterior Wall Construction
Wall Construction: 2x4
Exterior Finish: Brick, Siding
Request different exterior wall construction
Garage Details
Garage Type: Attached
Garage Entry: Side Load
Garage Bays: 2.0
Garage Sq. Ft.: 555 Sq. Ft.
Ceiling Heights
Main Level: 9'
Second Level: 8'
Roof Details
Main Roof Pitch: 9/12
Secondary Roof Pitch: 14/12
Max Ridge Height: 26.2
Roof Framing Type: Truss
Plan Features
  • Vaulted/ 2 Story Great Room Ceiling
  • Mudroom
  • Outdoor Fireplace
Laundry Location: Main Level, Adjacent to mudroom
Master Suite Location: Main Level
Plan Contents
  • Cover Sheet with General Notes
  • Exterior Perspective Views
  • Foundation Plan
  • Floor Plans with Dimensions and Annotation
  • Roof Plan
  • Exterior Elevations
  • Sections
  • Construction Details
×
