17016
Plan Code
2785
Total Sq. Ft.
3
Bedrooms
2.5
Bathrooms
2.5
Stories
2.0
Garage Bays
Ardmore Estate - 2785 Sq. Ft. - 3 Bedrooms - 2.5 Bathrooms - House Plan Exterior
Ardmore Estate
Ardmore Estate
Ardmore Estate
Ardmore Estate
Ardmore Estate
Ardmore Estate
Ardmore Estate
Ardmore Estate
Ardmore Estate
Ardmore Estate

Ardmore Estate

Starting at
$1,965.00 - $2,765.00

Ardmore Estate - 2785 Sq. Ft. - 3 Bedrooms - 2.5 Bathrooms

Ardmore Estate is a distinguished design that perfectly balances elegance and everyday livability. With an open-concept main floor blending living, dining, and kitchen spaces, it creates a welcoming flow for daily family life and entertaining. The home’s gracious layout offers spacious bedrooms and well-proportioned rooms throughout, giving a sense of comfort and upscale livability. With its tasteful design details, generous living area, and flexible floor plan, Ardmore Estate stands out as a refined, practical home — ideal for families or anyone wanting classic style with modern comfort.

Designed and sold directly by the original residential designer. Construction-ready drawings included, with custom modifications available.

  • Includes a single-build residential license (one home build)
  • Complete builder-ready plans for permit and construction (for most jurisdictions)
  • PDF file can be emailed to your builder and suppliers, uploaded for permits and sent to your local print shop for blueprint copies
  • Need changes after purchase? Custom revisions are available upon request
  • Digital delivery — no shipping. Drawings are personalized with your name on the title block.
  • Designer support available after purchase

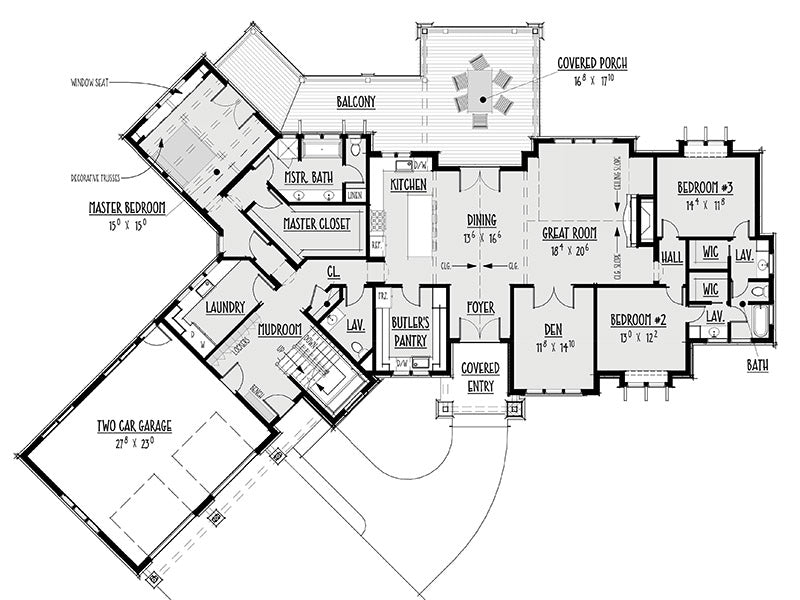

Ardmore Estate main level floor plan
Main Level Floor Plan (click to enlarge)
Ardmore Estate second level floor plan
Second Level Floor Plan (click to enlarge)
Ardmore Estate lower level floor plan
Lower Level Floor Plan (click to enlarge)
Customize This Plan
Want to tweak room sizes, adjust the exterior, or rework the layout? Tell us what you have in mind and we’ll review options and pricing for this specific plan.
Request customization
Square Footage Details
Total Heated Sq. Ft.: 2785 Sq. Ft.
Main Level Sq. Ft.: 2785 Sq. Ft.
Lower Level Sq. Ft.: 2770 Sq. Ft.
Bonus Room Sq. Ft.: 612 Sq. Ft.
Garage Sq. Ft.: 678 Sq. Ft.
Entry Covered Porch Sq. Ft.: 102 Sq. Ft.
Rear Covered Porch Sq. Ft.: 331 Sq. Ft.
Deck Sq. Ft.: 277 Sq. Ft.
Bedrooms / Baths
Bedrooms: 3
Full Baths: 2
Half Baths: 1
Total Baths: 2.5
Site Considerations
Lot Configuration: Sloping to Rear
Width: 108' -10"
Depth: 80' -4"
Max Ridge Height: 29.0
Foundation Type
Foundation: Basement
Walkout Basement: Yes
Request different foundation type
Exterior Wall Construction
Wall Construction: 2x6
Exterior Finish: Stone, Siding, Log
Request different exterior wall construction
Garage Details
Garage Type: Attached
Garage Entry: Courtyard Load
Garage Bays: 2.0
Garage Sq. Ft.: 678 Sq. Ft.
Ceiling Heights
Main Level: 10'
Second Level: 8'
Roof Details
Main Roof Pitch: 12/12
Secondary Roof Pitch: 4/12
Max Ridge Height: 29.0
Roof Framing Type: Truss
Plan Features
  • Vaulted/ 2 Story Great Room Ceiling
  • Mudroom
  • Jack & Jill Bath
  • Library/ Study
  • Angled Garage
  • Butler's Pantry
Laundry Location: Main Level, Adjacent to mudroom
Master Suite Location: Main Level
Plan Contents
  • Cover Sheet with General Notes
  • Exterior Perspective Views
  • Foundation Plan
  • Floor Plans with Dimensions and Annotation
  • Roof Plan
  • Exterior Elevations
  • Sections
  • Construction Details
×
